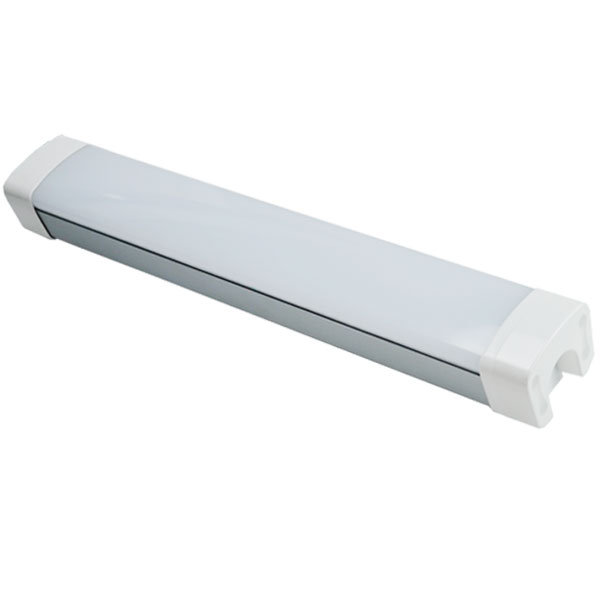

Tri-Proof Light
Name:Tri-Proof Light

Product Description



Model Size(mm) Power
Input
Voltage
LED  IP CRI Luminious
SQ-TP60096-20W-A 600*96*83 20W AC100~240V
SMD2835* 120pcs IP65 ≧80 2200LM
SQ-TP120096-40W-A 1200*96*83 40W SMD2835* 240pcs 4400LM
SQ-TP150096-50W-A 1500*96*83 50W SMD2835* 300pcs 5500LM
SQ-TP150096-60W-A 1500*96*83 60W SMD2835*300pcs 6600LM
CCT Range: WW:2800-3100K; NW:3900-4300K; PW:4900-5300K; CW:6000-6500K           PF>0.95



Feature and Advantages:

●  Can be waterproof, dust proof, corrosion proof, high performance waterproof, IP65.

●  The sophisticated and beautiful appearance, fine workmanship, the high-output, high brightness, 110lm/w.

●  The unique structure, is smaller than the traditional Tri-proof light; hoisting can also be mounted on the wall or hoisting.

    Saving installation cost

●  Corrosion resistance: can be used in strong corrosive environment of indoor and outdoor

●  Isolated constant current power supply, can stay long lifespan.

●  Thicker aluminum,and perfact heat dissipation, low surface temperature. Security and long-life LED power supply.

●  High luminous effciency 0.5w SMD2835 LED chip with LM-80 report. Longer life.



Application:

● Widely used in Railways, electricity, metallurgy , petroleum, petrochemical and all kinds of factories, workshops ,

   field stations and large facilities , stadiums and other places floodlighting.
